View Crystal Balustrade

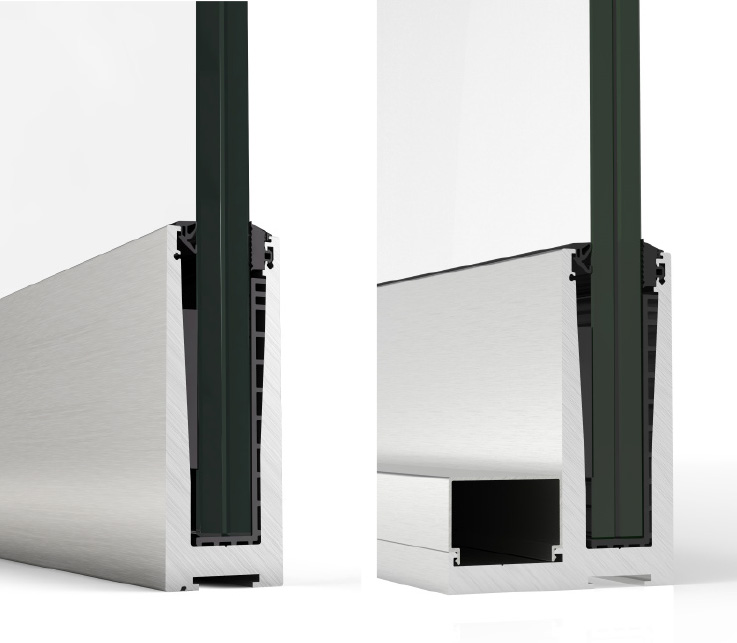

Enjoy stunning views without any obstacles thanks to this railing system based on a U-shaped aluminium profile on which tempered laminated safety glass is fixed.
View Crystal: Resists a load of 1.0 kN/m applied at 1.1 metres from its lower part. Suitable for zones A1, A2, B, C1, C2, D1, D2, G1 and G2, included in CTE DB SE-AE, and a, b, c1, c2, c3, c4, d and E according to Eurocode 1. View Crystal Plus: Supports a load of 3.0 kN/m. Suitable for use in all zones of CTE DB SE-AE and zones a, b, c1, c2, c3, c4, C5, d and E included in Eurocode 1.
LAMINATED GLASS COMPOSITIONS
10-1.52-10
10-1.14-10
10-0.76-10
10-0.38-10
8-1.52-8
8-1.14-8
8-0.76-8
8-0.38-8
6-1.52-6
6-1.14-6
6-0.76-6
6-0.38-6
More Information
Tests according to UNE 85237, UNE 85238 and UNE 85240. Requirements established in the CTE (DB SU-1 and DB SE-AE) and in Eurocode 1 according to EN 1991-1-1/AC
Static horizontal test outward
Static horizontal test inward
Dynamic soft body test
Dynamic hard body test
Verification of section 3.2 of CTE DB-SE-AE
Verification of Eurocode 1 specifications according to table 6.12 for use categories from 1 kN/m to 3 kN/m
Classification according to UNE 85240, Class A-Excellent
Reference test: extruded aluminium and glass railing, anchored to the slab edge, total dimensions above floor level 1100 (H) x 1500 mm (L)
Reference test: extruded aluminium and glass railing, anchored on the slab, total dimensions above floor level 1100 (H) x 1500 mm (L)
Installation Options

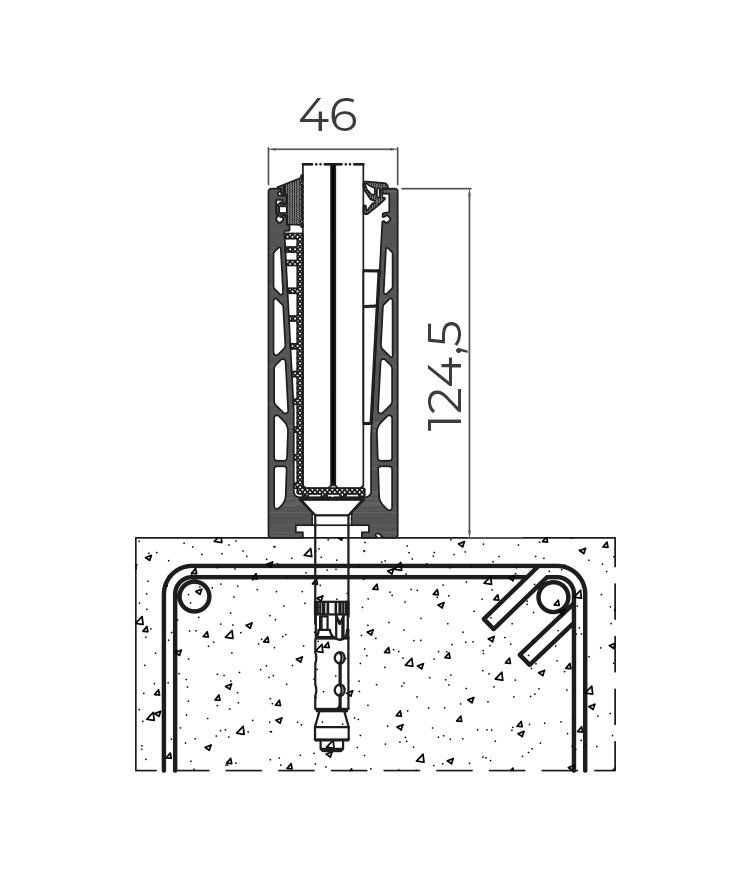

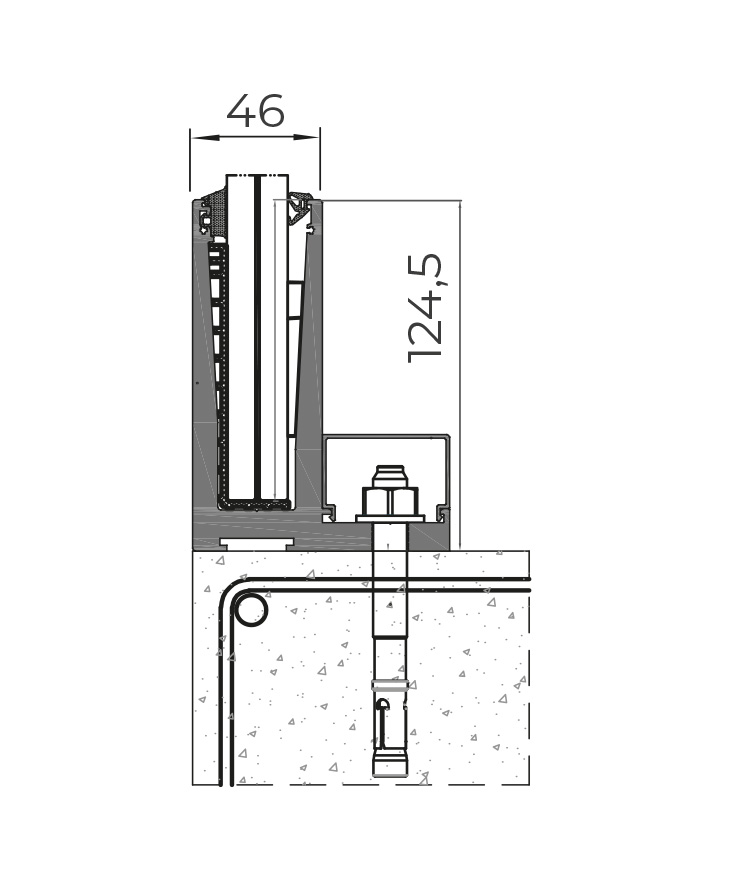

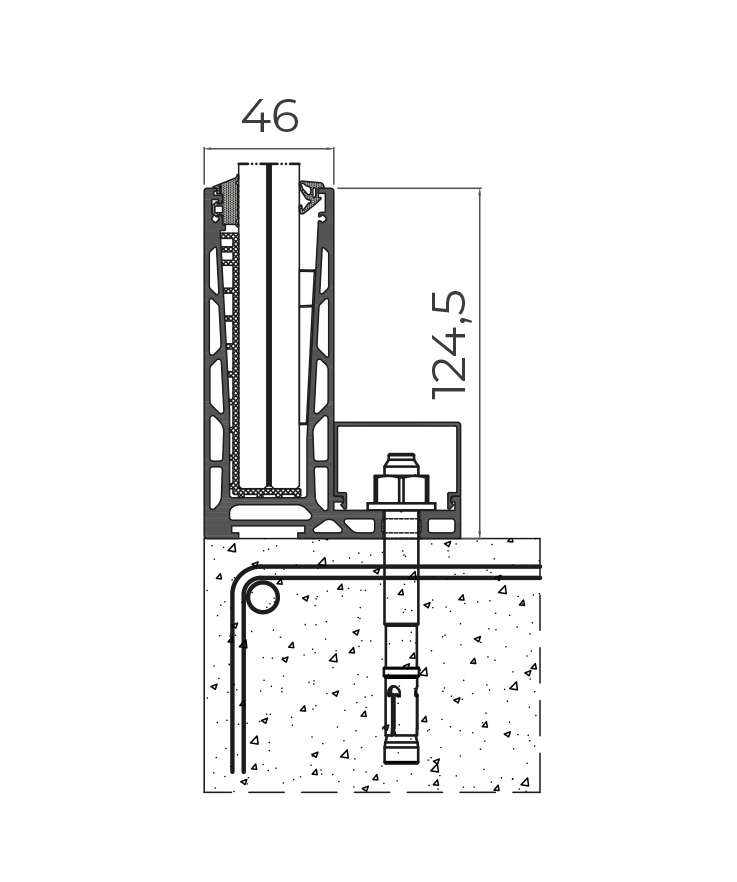

On slab

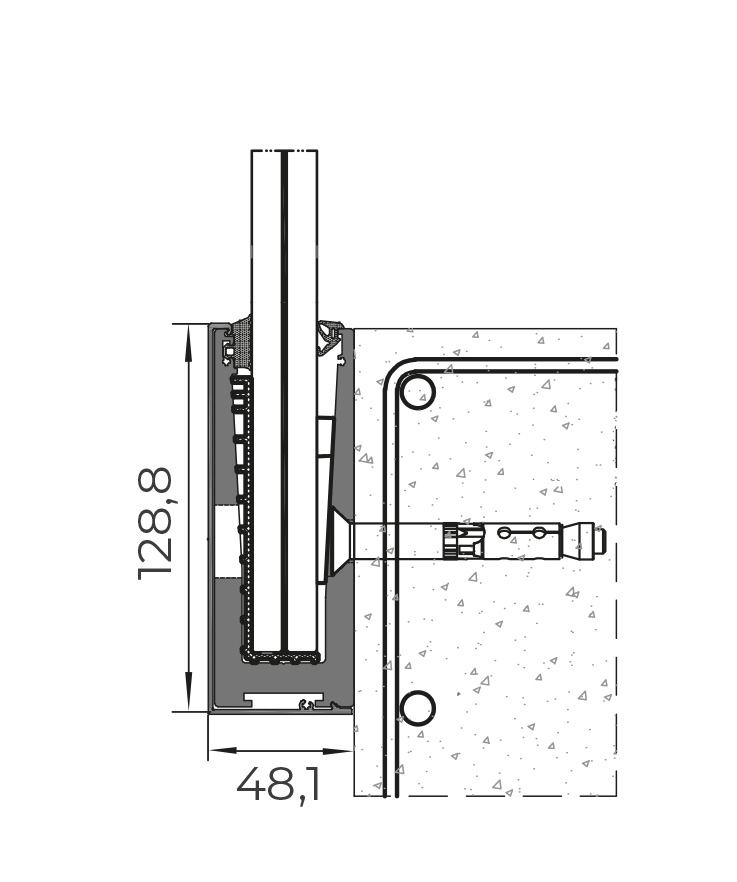

Flush with slab edge
Flush with slab edge in slab

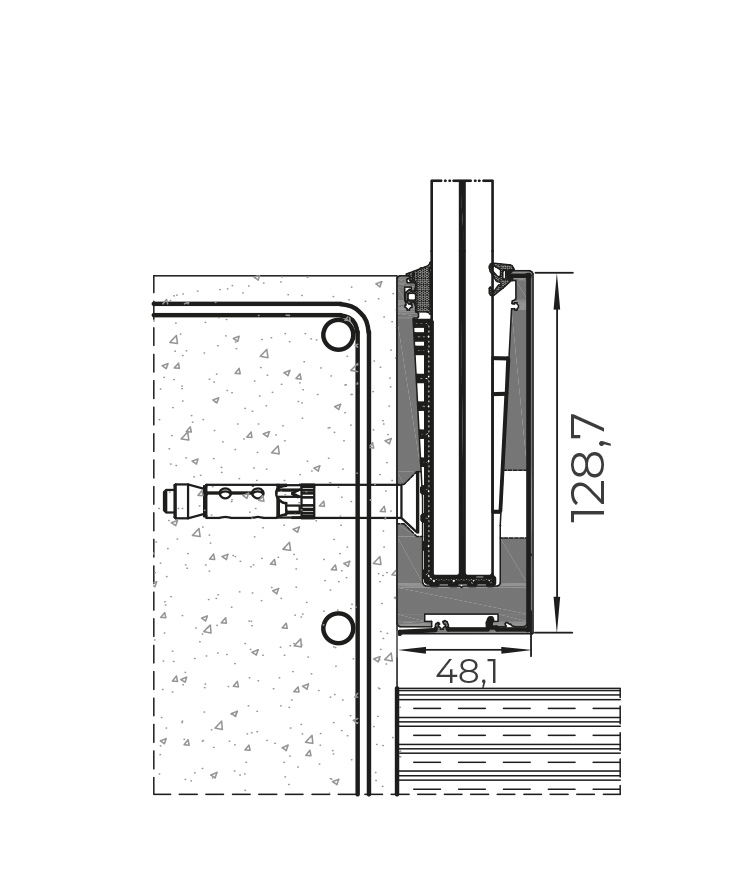

Flush with slab edge in flooring

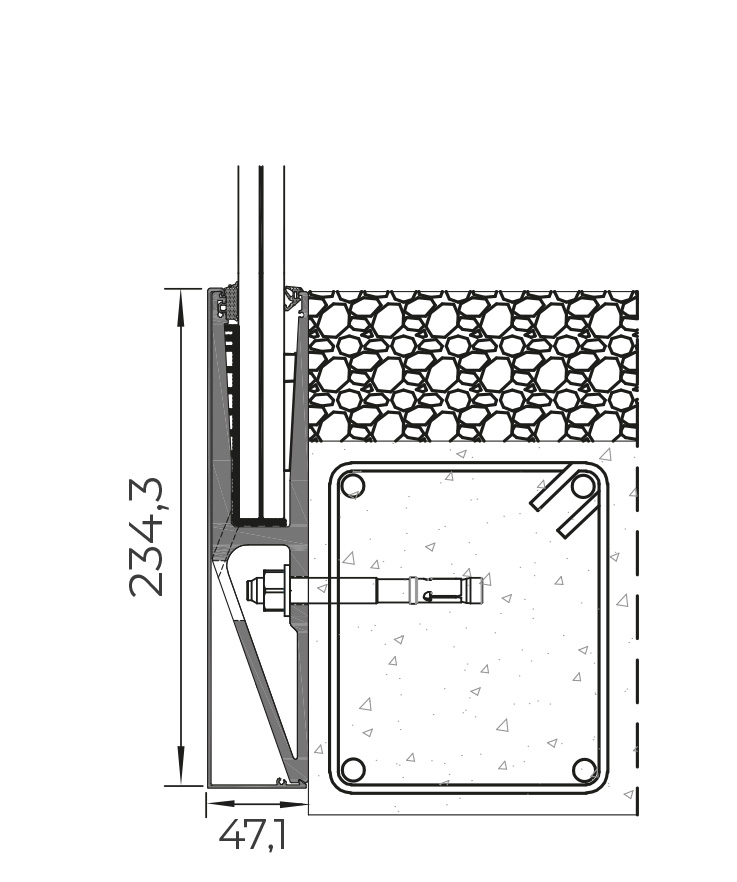

Inverted slab edge
Maximum Height
1100 mm
