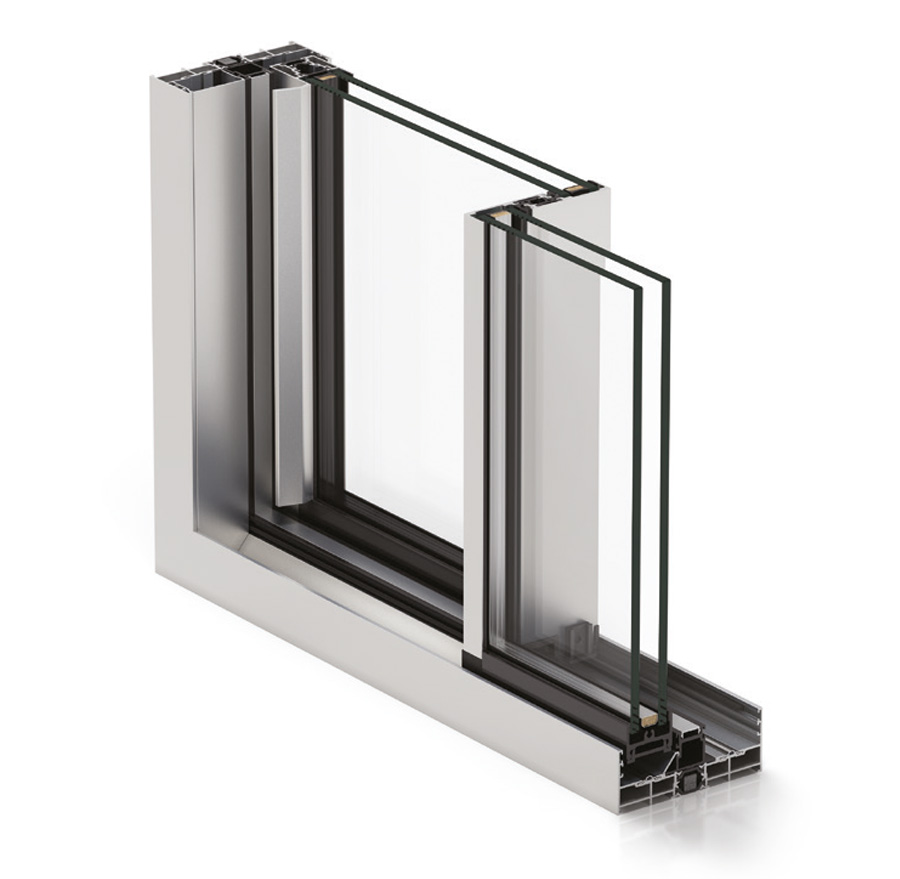

COR Vision Sliding
Minimalist sliding system with thermal break that provides maximum brightness with the minimum visible aluminium section.
It features an elegant design with a central junction of only 20 mm and offers the possibility of concealing the frame around the perimeter.
Central junction locking option that allows the sashes to be hidden within the frame from a front view.

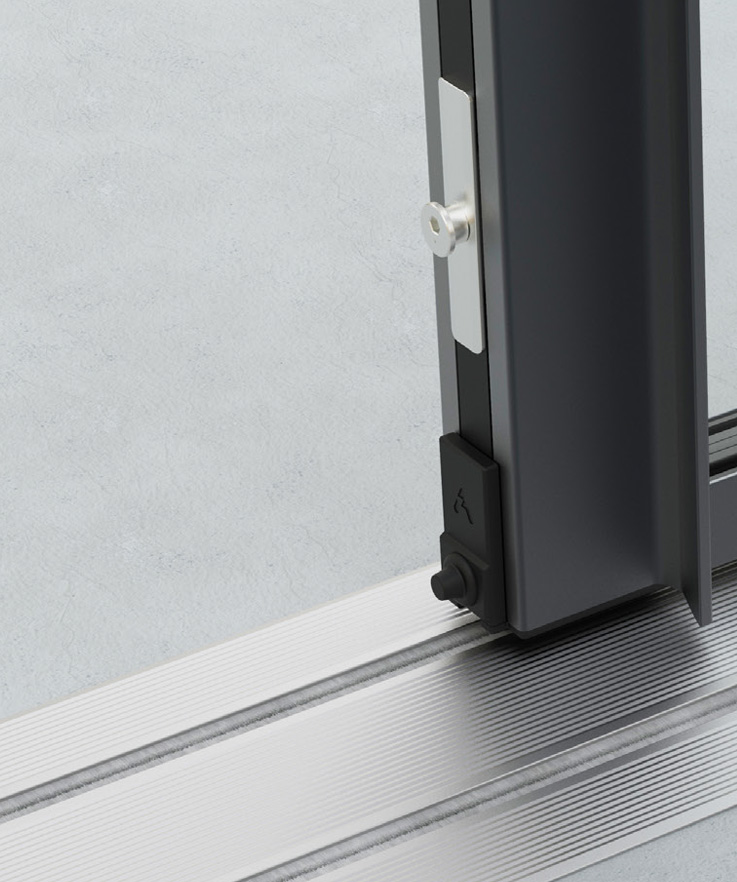

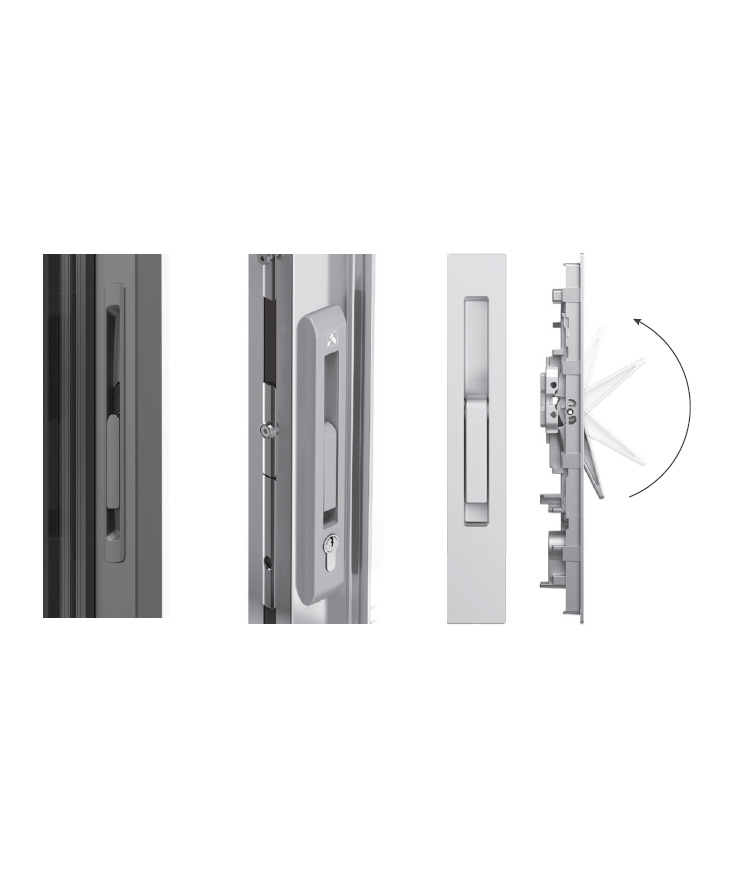

Option of concealed locking that facilitates the crossing of the sashes.
FEATURES
Thermal transmittance
Uw ≥ 1.3 (W/m²K)
Acoustic insulation
Rw up to 41 dB
Air permeability
Class 4
Water tightness
Class 7A
Wind resistance
Class C5
Reference test AEV 1.23 x 1.55 m / 1 sash + 1 fixed
More Information

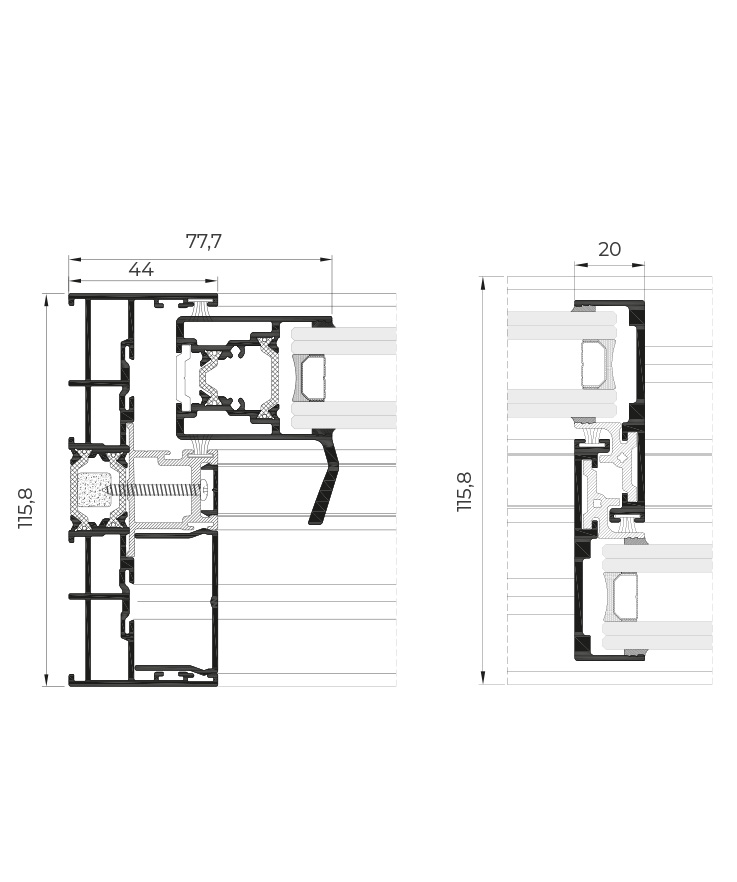

Sections
Frame 116 mm / 182 mm triple track
Sash 37 mm
Polyamide bar length
16 / 24 mm
Profile thickness
Door 1.7 mm
Glazing
Max. 30 mm, Min. 26 mm
Maximum sash dimensions
Width (L) 2500 mm
Height (H) 3000 mm
Maximum sash weight
320 kg
Check maximum weight and dimensions according to typology
Options
Accessibility

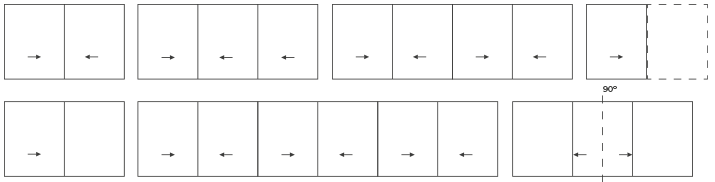

Opening Possibilities
Sliding
Single, double and triple track
Possibility of 90º corner junctions without mullion
Pocket system
