4700 Sliding
This sliding system, available in lift-and-slide or inline versions, is the ideal solution for closing large openings.
It features a modern aesthetic with straight lines, a reduced central mullion, and large glazed surfaces that ensure bright and comfortable spaces, thanks also to its outstanding thermal and acoustic performance.
FEATURES
Thermal transmittance
Uw ≥ 1.0 (W/m²K)
Acoustic insulation
Rw up to 40 dB
Air permeability
Class 3* / 4**
Water tightness
Class 7A
Wind resistance
Class C5* / C2**
*Reference test inline AEV 1.8 x 2.2 m / 2 sashes
**Reference test lift-and-slide AEV 4.0 x 2.50 m / 2 sashes
Security test: Reference test 2.40 x 2.40 m / 2 sashes
More Information

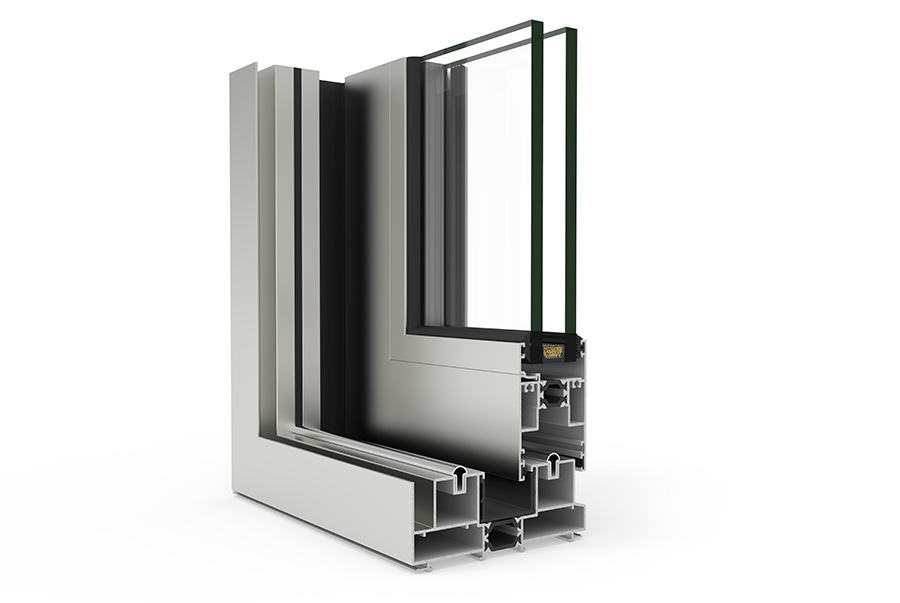

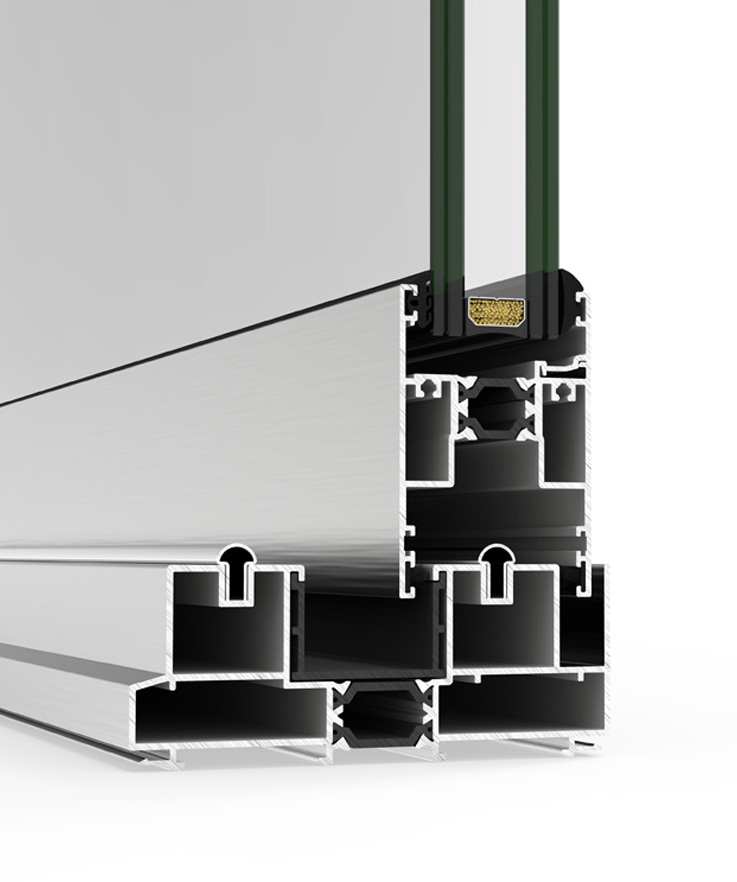

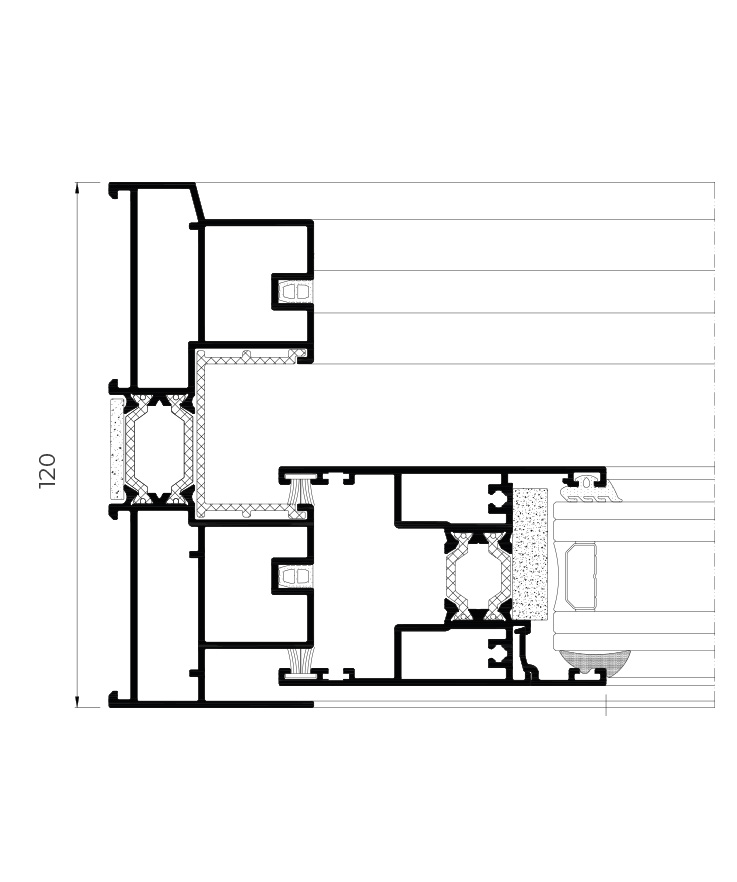

Sections
Frame 115 and 120 mm, 185 mm triple track
Sash 50 mm
Polyamide strip length
20–25 mm
Profile thickness
Max. 36 mm, Min. 26 mm
Glazing
Max. 65 mm, Min. 22 mm
Maximum sash dimensions
Width (L) 2500 mm, Height (H) 3000 mm
Maximum sash weight
Inline 280 kg
Lift-and-slide 300 kg
Check maximum weight and dimensions according to typology

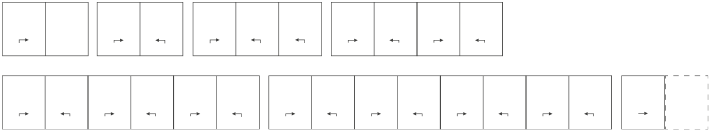

Opening Options
Sliding
Single track (sash + fixed)
Double, triple and four tracks
Pocket system
